From Axis

The design emphasis is on easy lift, stability and predictable turning. Freeride small offer dimensions for advancing riders looking to get large wings turning more freely.

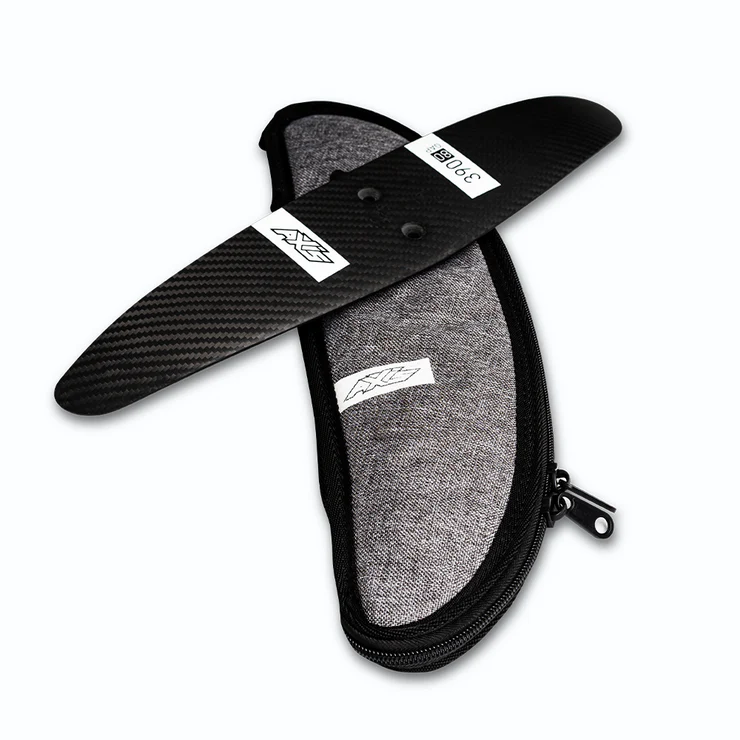

Package Includes

• Wing
• Wing Cover

• Assembly Hardware Sold Separately

390 Freeride Small Carbon Rear Wing Technical Data

• WINGSPAN: 390 mm / 15.35 in
• CHORD: 80 mm / 3.15 in
• ASPECT RATIO: 6.23
• ACTUAL AREA : 254.52 cm² / 39.45 IN²
• PROJECTED AREA: 244.26 cm² / 37.86 IN²
• VOLUME: 134.75 cm³ / 8.22 IN³

370 Freeride Small Carbon Rear Wing Technical Data

• WINGSPAN: 370 mm / 14.57 in
• CHORD: 90 mm / 3.15 in
• ASPECT RATIO: 6.01
• ACTUAL AREA : 239.54 cm² / 37.13 IN
• PROJECTED AREA: 227.61 cm² / 35.28 IN²
• VOLUME: 123.28 cm³ / 7.52 IN³

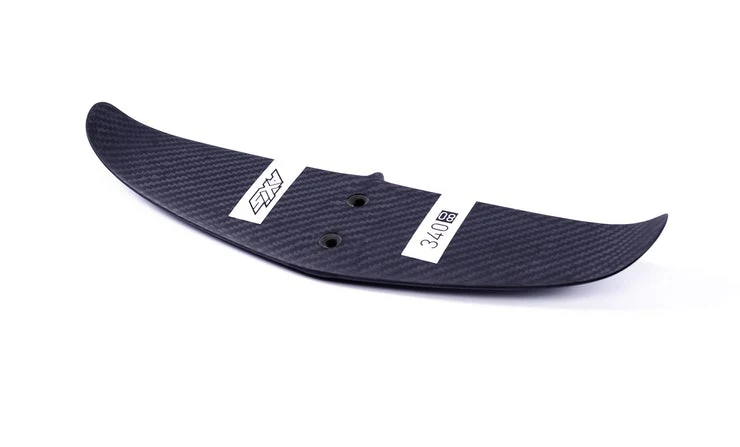

340 Freeride Small Carbon Rear Wing Technical Data

• WINGSPAN: 340 mm / 13.39 in
• CHORD: 80 mm / 3.15 in
• ASPECT RATIO: 5.53
• ACTUAL AREA : 221.01 cm² / 34.26 IN²
• PROJECTED AREA: 209.13 cm² / 32.42 IN²
• VOLUME: 113.21 cm³ / 5.53 IN³
